Brand Name : HAOFENG
Place of Origin : CHINA
MOQ : 1 set/part
Payment Terms : T/T
Delivery Time : 5-30 work days
Packaging Details : upon request
advantage : Less investment, simple operation,energy-saving
model : multiple models are available
feature : Efficient and environmentally friendly
Impact hammer crusher is a new high-tech product, after combine the advantage of impact crusher and common hammer crusher, Our engineer team finally design this products successfully with many years experience. lt has the feature of simple structure, big crush ratio, high efficient ;Can be used in dry and wet crushing process. It is applied to mining,cement,coal,building,highway,chemical industry.It is suitable for fine crushing varies of medium-hardness and fragile material,The gap of bar can be adjusted to meet different requirement.
big crushing ratio, high capacity
heavy duty rotor, low-energy consumption
high production ratio, good shape product
easy adjustment
easy to replace hammer
convinient bar replacement
Technical Data
Model | Max Feed Size(mm) | Capacity(th) |
Motor Powver(kw) |
|
31.5mm(t/h) | <80mm(t/h) | |||
IHC6506 | ≤700 | 220 | 340 | 200 |
HC6305 | 700 | 280 | 450 | 220 |
IHC6307 | 700 | 380 | 600 | 250 |
IHC7107 | 5800 | 500 | 780 | 355 |
IHC7108 | 5800 | 820 | 960 | 450 |
HC7908 | 1000 | 830 | 1250 | 630 |
IHC7910 | ≤1000 | 1000 | 1650 | 710 |
IHC9408 | ≤1100 | 1500 | 2300 | 900 |
HC9410 | 1100 | 1800 | 2700 | 1120 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
![]() |

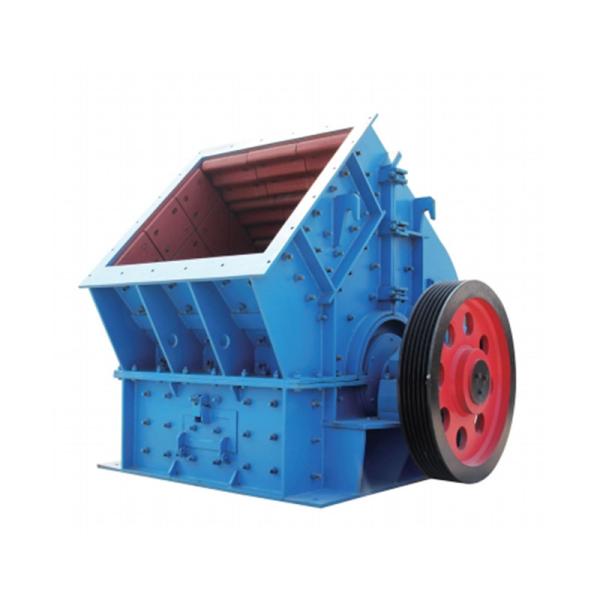

LHC Series Impact Hammer Crusher To Mining Cement Coal Building Highway Chemical Industry Images |
